We are manufacturers and exporters of
Boiler Components, Boiler & Accessories, Boilers Gas Fired, Boiler I.B.R. & Non I.B.R., Oil Burner Controllers, Boiler Accessories, Boiler Spares, Boilers I.B.R. & Non-I.B.R., Burner Control Systems, Burner Controllers, Flame Amplifier, Flame Rod Amplifier, Flame Sensors, Furnace Spare Parts, Gas Burner Controller, Gas Fired Boilers, IBR Boilers, Ignition Transformers, Import Substitute Sequence Controllers, LDR Flame Amplifier, LDR Flame Sensor, Modulating Controller, Non IBR Boilers, Non IBR Burners, Oil Burner Controller, Sequence Controller, Userspecific Sequence Controller, UV Amplifier, UV Flame Sensor, UV Sensors

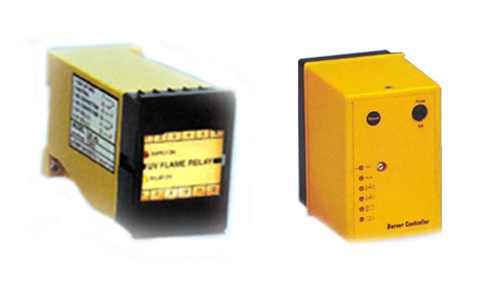

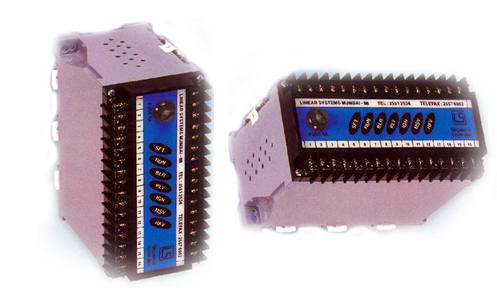

Burner / Sequence Controllers
Oil fired Burners/ Boilers :
107 - S - 60, 107 - S - 30 (Standard models with pre purge time of 60 Seconds and 30 seconds)
107 - S - FO ( controller for furnace oil)
107 - M ( suitable for Nestler Boilers)
107 - TU
LS - 107 (suitable for IAEC make boilers)
150 - P - 6 (equivalent to MA - 150 Controller)
Gas Fired Burners / Furnaces with UV flame sensing.

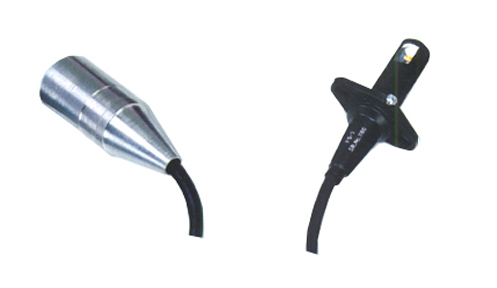

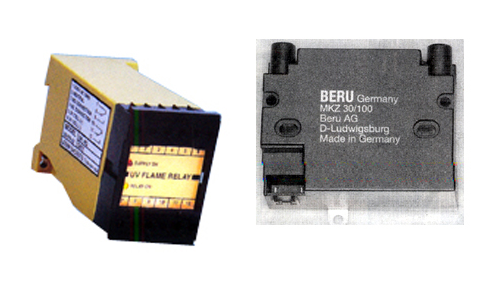

UV Sensor and Amplifiers
UV Flame Sensor designed by Linear Systems uses very sensitive electronic UV tube. The specially tuned UV tube is designed to detect UV radiations emitted by the naked flame. The UV Flame Sensor is insensitive to normal light and refractory glow in furnace walls. UV Sensor is ideally suited for detecting all types of flame, namely flames due to Gas / Coal / Oil fired burners in Boiler and Furnaces.
Flame Rod Amplifier
LINEAR SYSTEM's Flame rod sensor senses the flame using flame detection rectification technique. The Amplifier provides a voltage for the Flame Electrode. The flame electrode is immersed in flame to sensed. The current thus generated by the flow of electrons through the flame to the ground is detected by the controller for presence of flame.
